Examples#
Five notebooks, one aspect of the simulator each. They are executed when the documentation is built, so every output below comes from the installed version; the sources live in examples/ in the repository.

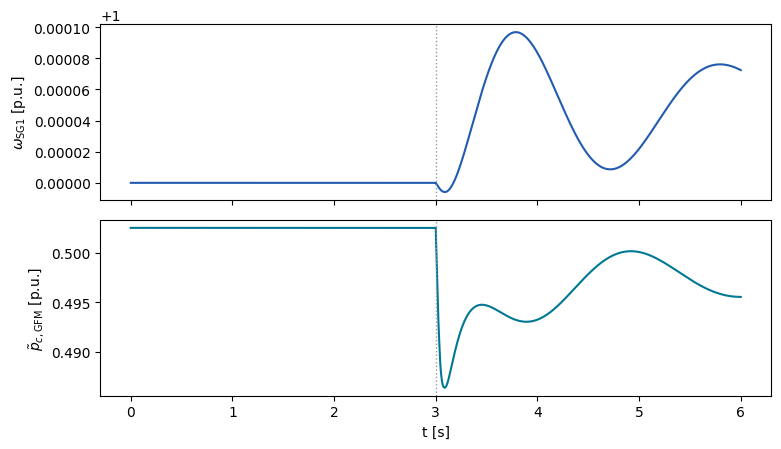

Getting started: run a shipped system, read the power flow, plot the trajectories.

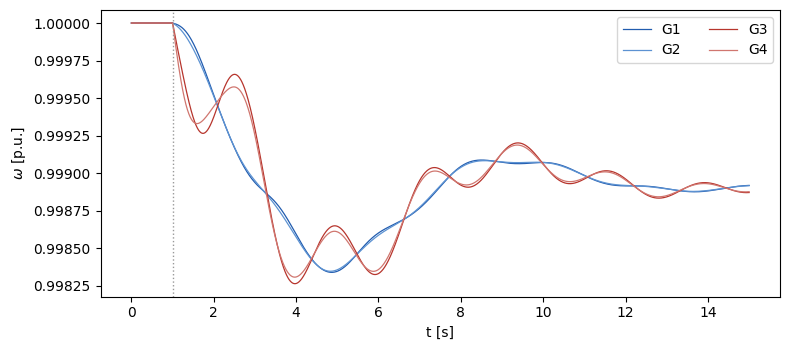

Disturbances: the scheduled-event machinery, read off the Kundur two-area inter-area oscillation.

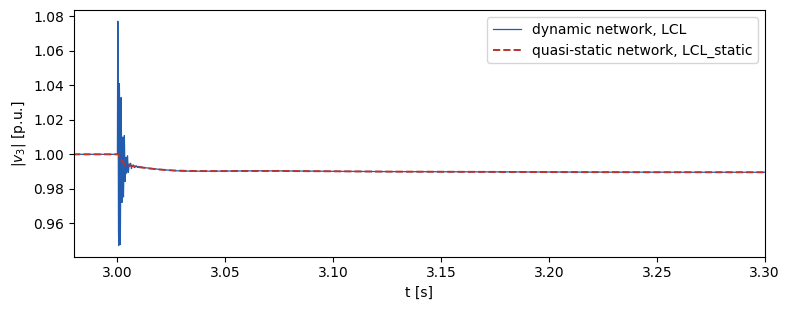

One system, RMS and EMT: a machine and a grid-forming converter under the quasi-static and the dynamic network model, with the output filter swapped to its quasi-static variant.

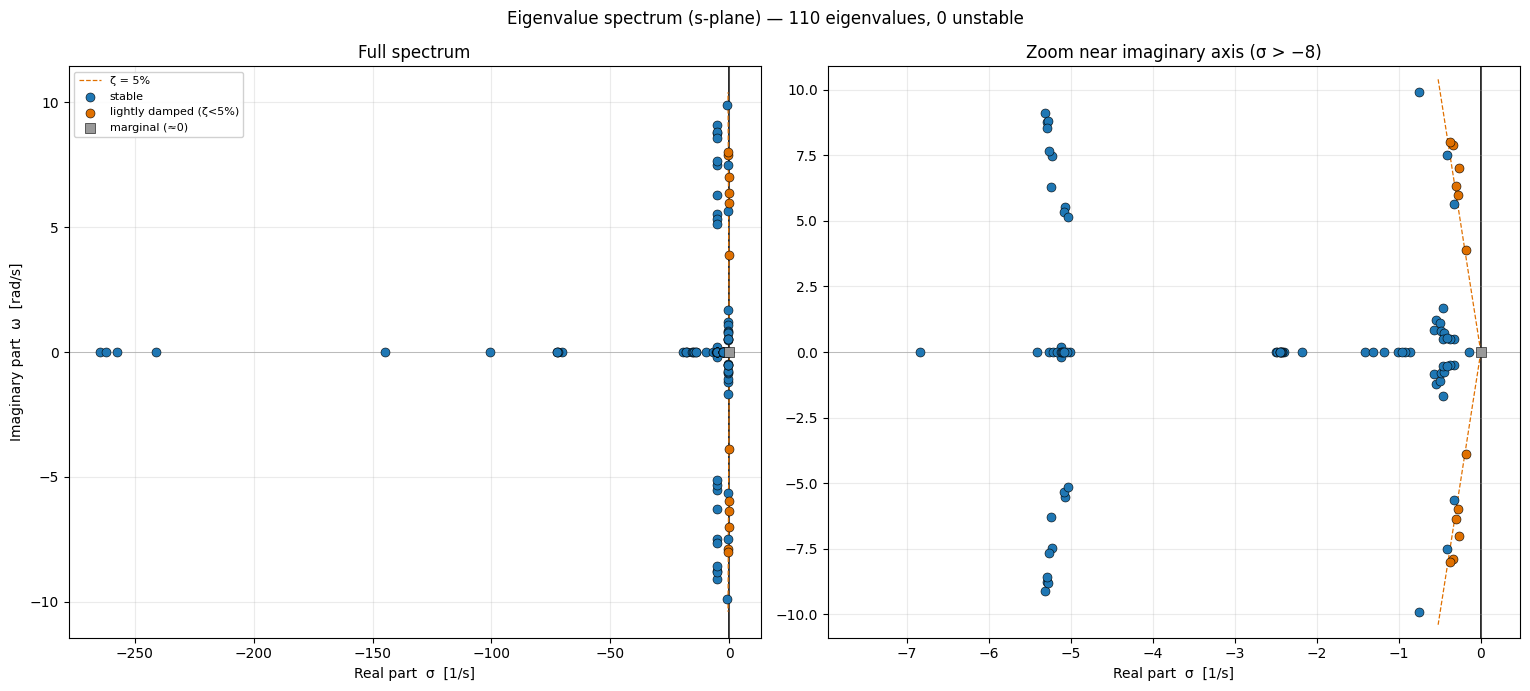

Small-signal analysis: eigenvalues, modal report and participation factors of the IEEE 39-bus system.

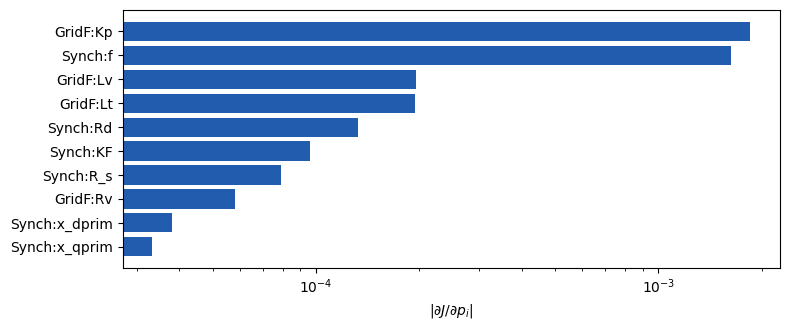

Parametric sensitivities: the gradient of a trajectory functional with respect to every device parameter, checked against finite differences.
